AXIS M1137-E MK II
Details
Details

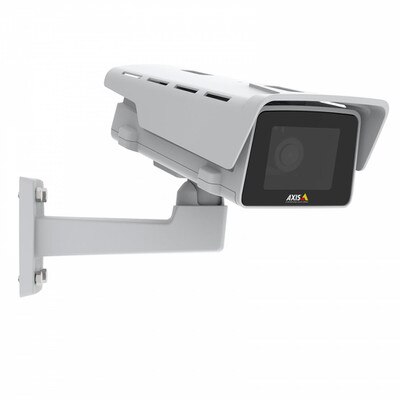

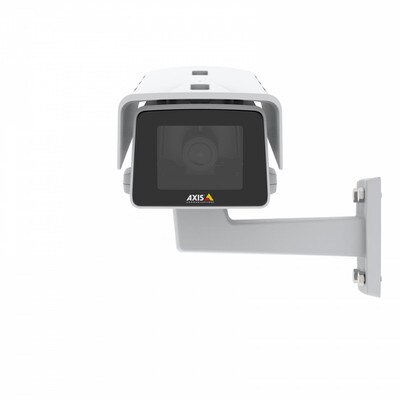

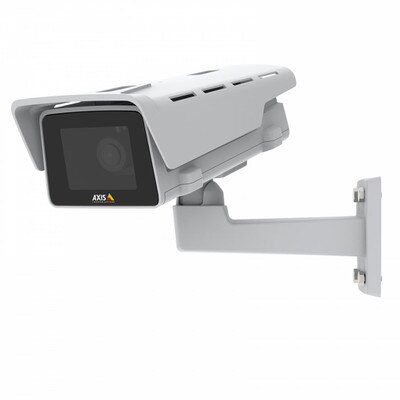

AXIS M1137-E MKII: Outdoor, NEMA 4X, IP66 and IK10-rated, light weight 5MP resolution, day/night, compact fixed box camera with CS-mount providing Forensic WDR and Lightfinder technology. Includes an IR corrected varifocal 2.8-13 mm F1.4 DC-iris lens. Camera also supports i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; full HDTV 5MP at 25/30 fps. Axis Zipstream technology for reduced bandwidth and storage needs. AXIS Object Analytics and active tampering alarm. Audio in and audio detection with optional microphone. I/O for alarm/event handling, MQTT support. Axis Edge Vault for added cyber security. MicroSD card slot for local storage. Operation in -25°C to +50°C. Powered by IEEE 802.3af/802.3at Type 1 Class 3 or 8-28VDC input. Includes removable sunshield, wall bracket, Torx T20 screw driver and IP66- rated cable glands. Midspan or power supply not included.
- Compact and flexible design
- Lightfinder and Forensic WDR
- Audio input
- AXIS Object Analytics
- Support for i-CS lenses
Technical Specification
Technical Specification
IP Rating | IP66 |
PoE | PoE+ |
Day Night | Yes |
IR | No |
Resolution | 5MP |
Form Factor | Full body |
IK Rating | IK10 |
WDR | Yes |
Vendors Part Number | 02486-001 |
