AXIS Q1656

SKU: AXIS Q1656

Details

Details

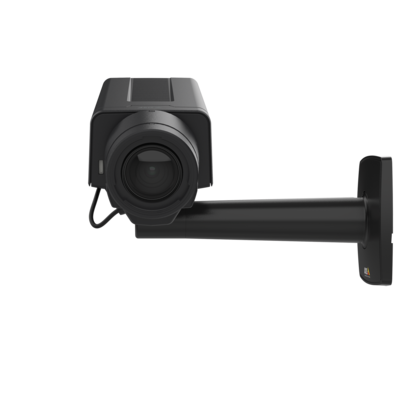

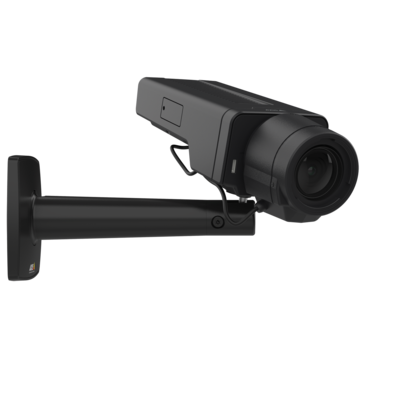

AXIS Q1656: 1/1.8” sensor, 4 MP, Day/night fixed box camera with Deep Learning Processing Unit (DLPU). Support for Forensic WDR and Lightfinder 2.0. Includes an IR corrected varifocal 3.9-10 mm F1.5 i-CS lens with remote zoom and focus. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30 fps with WDR. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault with FIPS certified TPM for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio, audio detection with either built-in microphone or optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3af Type1 Class 3 (PoE) or 10-28 V DC power with redundancy. Includes black stand for wall and ceiling. Midspan or power supply not included.

  • Exceptional images with 1/1.8” sensor
  • Support for analytics with deep learning
  • Built-in cybersecurity features
  • Premium Axis Q-line camera functionality
  • Remote zoom and focus

Technical Specification

Technical Specification

PoE

PoE+

Day Night

Yes

IR

No

Resolution

4MP

Form Factor

Full body

WDR

Yes

Vendors Part Number

02164-001
