AXIS Q1656-BLE

SKU: AXIS Q1656-BLE

Details

Details

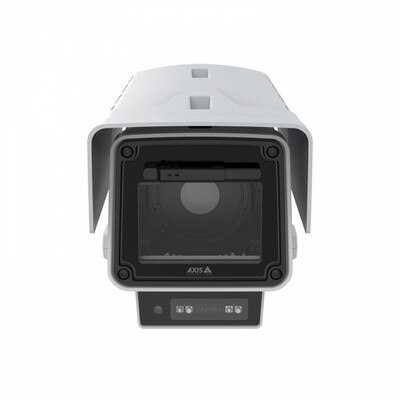

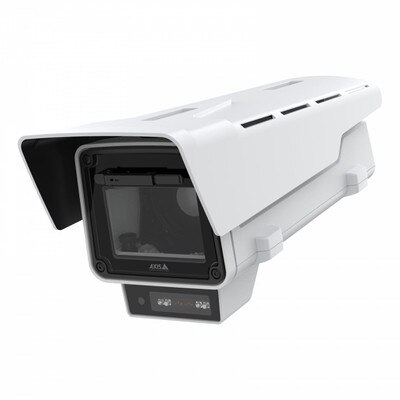

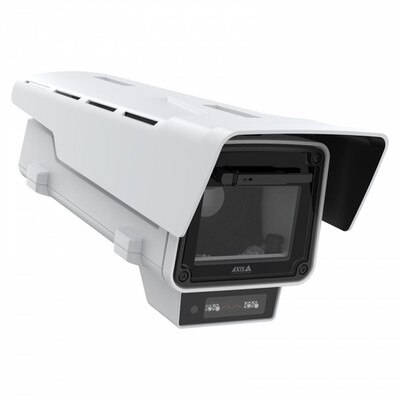

AXIS Q1656-BLE: 1/1.8 image sensor, outdoor, NEMA 4X, IP66, IP67 and impact resistant, 4 MP, Day/night fixed box camera with Deep Learning Processing Unit (DLPU). Built in wiper. Support for Forensic WDR and Lightfinder 2.0. OptimizedIR, a power-efficient 850nm and 940nm IR LED technology. Multiple, individually configurable streams, H.264/H.265 with Zipstream and Motion JPEG. 4MP stream up to 60 fps, 30 fps with WDR. AXIS Object Analytics, Video motion detection, shock detection and active tampering alarm. AXIS Edge Vault with FIPS certified TPM for added cyber security. Barrel distortion correction, defogging, electronic image stabilization and scene profiles. MQTT Support. Two-way audio, audio detection with optional analog or digital microphone. Supervised I/O for alarm/event handling, MicroSD/MicroSDHC memory card slot for optional local video storage. Serial port for RS422/485 communication. Powered by IEEE 802.3at Type2 Class 4 (PoE+) or 10-28 V DC power with redundancy. Built-in heater, Arctic Temperature Control for start-up in -40°C to +60°C (-40 ºF to 140 ºF). Includes removable sunshield and cable glands. Lens and mounts are not included but available as optional accessories. Midspan or power supply not included.

  • Exceptional images with 1/1.8” sensor
  • Support for analytics with deep learning
  • Built-in cybersecurity features
  • Ready to customize for specific needs
  • Built-in wiper for snow and rain

Technical Specification

Technical Specification

IP Rating

IP66

PoE

PoE+

Day Night

Yes

IR

Yes

Resolution

4MP

Form Factor

Full body

IK Rating

IK10

Vendors Part Number

02442-031
