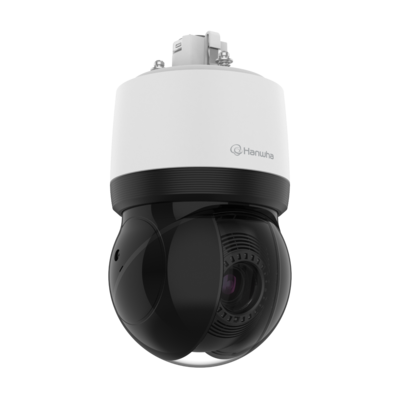

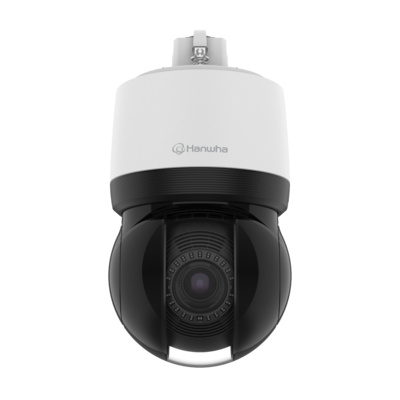

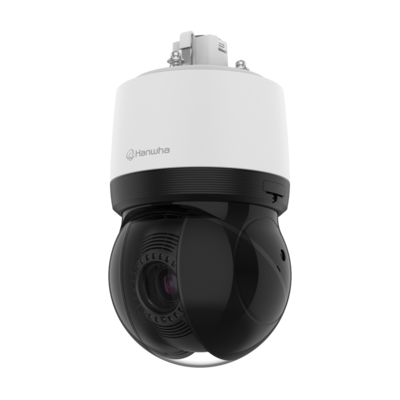

WISENET XNP-C6403R
Details
Details
WISENET XNP-C6403R Powered by WN7 PTZ Plus with AI, 2MP @ 60FPS resolution, 4.25mm~170mm (40x) lens, adaptive Wise IR (200m), extreme WDR 150dB, Day & Night ICR, H.265, H.264, MJPEG codec support, Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box), Object auto-tracking (Person/Vehicle), Target lock track, BLC, HLC, SSDR, lens heater for water/snow removal, IP66, IK10, NEMA4X, NEMA-TS 2(2.2.8, 2.2.9), FIPS 140-2, HPoE injector included, Operating Temperature -40°C~+55°C(-40°F ~ +131°F), (Compatible with I/O Box SPM-4210)
- 2MP resolution @ 30fps
- IR viewable length : 200m (656ft)
- 30x optical zoom lens (5mm ~ 150mm) (57.42° ~ 2.19°)
- Wiper & lens heater for water/snow removal
- -20° tilt look-up capability to see above the horizon
- H.265, H.264, MJPEG triple codec support
- Multiple streaming, WiseStream III support
- Day & Night (ICR), extreme WDR
- DIS with Built-in Gyro sensor
- Azimuth display (Cardinal & intermediate directions)
- AI-based Object Auto tracking (Person, Vehicle), target lock tracking, Intelligent video analytics
- Analytics events based on AI engine: Object detection (Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Analytics events: Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification (with NW I/O box)Object auto-tracking (Person/Vehicle), Target lock track
- Dual Memory slots (Maximum 512GB x 2)
- IP66, IK10, NEMA4X, NEMA TS-2 2.2.8 (Vibration) & 2.2.9 (Shock)
- HPoE (IEEE802.3bt, Class6, Type3, Injector included)
- TPM 2.0 with FIPS 140-2 level 2Optional Network I/O box for alarm & audio I/O SPM-4210
- Operating Temperature -40°C~+55°C (-40°F ~ +131°F)
Technical Specification
Technical Specification
IP Rating | IP66 |
PoE | PoE |
Day Night | Yes |
IR | Yes |
Resolution | 2MP |
Form Factor | PTZ |
IK Rating | IK10 |
WDR | Yes |
Vendors Part Number | XNP-C6403R |
